PhotoRealistic RenderMan
Application Note #26

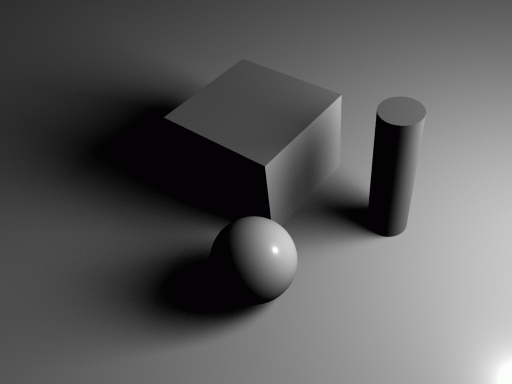

Figure 1: Soft Shadows

Introduction

Shadow computations from area light sources require visibility checks with more than one point on the light source. One way to approximate area shadows is by rendering multiple shadowmaps from various points on the light source, and averaging their shadow contributions. (see figures 3 and 4). If we were able to render an infinite number of shadowmaps, this would converge to the answer we seek. This is infeasible, of course, so we would like a solution which can approximate soft shadows without requiring a large number of shadowmaps.

PRMan 3.8 provides such a solution. The shadow shadeop has a new form which accepts multiple shadowmaps and a specification of the "area light's" shape. Since this only affects shadow computations, you don't get other phenomena associated with area light sources (such as non-point highlights), but the softening of shadows goes a long way to make illumination more realistic.

How to use them

IMPORTANT: There are currently two restrictions which must be followed when rendering these shadow views:

• Currently PRMan requires that all of the geometry which will cast shadows from a given light source must be contained in every shadowmap which is supplied to the shadow call. Clearly, each view will have different information (because of the shifted view position), but the volume of the occluding objects must be contained in the view frusta of every shadowmap.
• The shadowmaps must be in a new, special shadowmap format called minmax shadowmap. This format contains a hierarchical min-max tree of occlusion information which allows the soft shadow computation to be more efficient. These minmax shadow files are computed either by the RiMakeShadow call or with the separate utility txmake. (See below.)

Once you have multiple shadowmaps providing various views of the occluding objects, you can use them in a shadow call to render soft shadows. There are a few differences between the soft-shadow form of shadow and the normal case:

• The "name" parameter can be a comma-separated list of filenames rather than a single filename. This is where you list the various views you've rendered.
• The new "source" parameter lets you specify the location and shape of the area light source. We never had to specify this before because the location was implicitly the origin of the shadowmap's view; since we have multiple shadowmaps now, we must be more explicit. The "source" keyword must be followed by one, two, three, or four points (which must be uniform and in current space), which will specify a point, line segment, triangle, or quadrilateral light source; if using a quadrilateral light source the points must be specified in "bowtie" order (in the same way that the points are ordered for a bilinear patch). The renderer will integrate its lighting computations over this area. It is generally advisable that your shadowmaps are rendered from various points on this surface.
• The new "gapbias" parameter tells the renderer how to infer connectivity information in the shadowmaps. Adjacent pixels whose z values are within "gapbias" of each other will be assumed to be part of the same object. Sometimes experimentation may be necessary to find the right gapbias value, but a good starting point (and often a good enough value) is the shadow bias number.

As before, the bias parameter specifies how far to shift samples towards to the light source to prevent self-shadowing of objects.

The samples parameter still specifies how many samples to cast when performing the shadowmap computation. Larger values will produce less noisy output and smoother shadows, but are proportionally more expensive to compute.

Example

   txmake -minmaxshadow light1.z light1.shad
   txmake -minmaxshadow light2.z light2.shad
   txmake -minmaxshadow light3.z light3.shad
   txmake -minmaxshadow light4.z light4.shad

Alternately, you can place a MakeShadow call in the RIB stream after each shadow pass. For example, in the RIB that creates "light1.z",

   MakeShadow "light1.z" "light1.shad" "minmax" 1

Next, we must write a shader that will make use of multiple minmax shadow files. Here's an example:

light arealight(color lightcolor = color(1,1,1);
		float intensity = 1;
		string maplist = "";
		float numsamples = 1;
		point Pl1 = point(0, 0, 0);
		point Pl2 = point(0, 1, 0);
		point Pl3 = point(0, 0, 1);
		point Pl4 = point(0, 1, 1);
		float shadowBias = 0.001;
		float gapBias = 0.01) {
    varying float attenuation;

    illuminate ((Pl1+Pl2+Pl3+Pl4)*0.25) {  /* base illumination at average */
                                           /* of light positions           */

    attenuation = shadow(maplist,Ps,"source",Pl1,Pl2,Pl3,Pl4,
              "samples",numsamples, "bias",shadowBias, "gapbias", gapBias);

    Cl = lightcolor * intensity * (1-attenuation);
  }
}

Note that this shader expects the comma-separated list of shadow views to be passed through the parameter "maplist." To use this shader in a final render, we make a light source in RIB that uses the above shader. For this shader, we pass in the list of views and the four corners of the light source:

LightSource "arealight" 1 "intensity" [1]
	    "maplist" ["light1.shad,light2.shad,light3.shad,light4.shad"],
	    "Pl1" [1.15622 -8.83187 4.78469]
	    "Pl2" [0.191448 -6.11682 8.94722]
	    "Pl3" [5.9265 -7.13679 4.78469]
	    "Pl4" [4.96173 -4.42175 8.94722]
	    "gapBias" [0.03]
	    "shadowBias" [0.3]
	    "numsamples" [36]

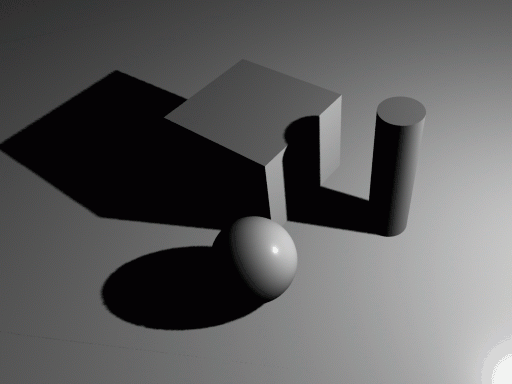

Figure 2: Hard shadow

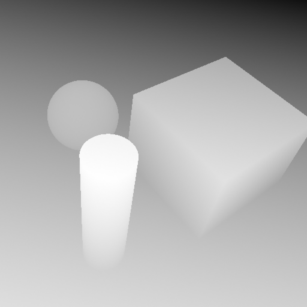

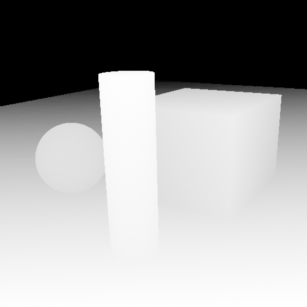

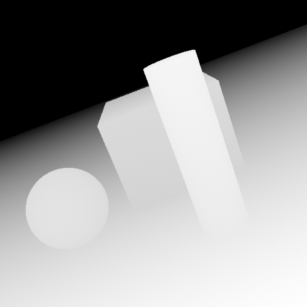

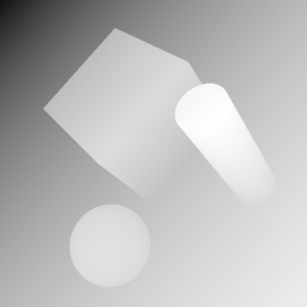

Figure 3: Four shadowmaps

Figure 4: Averaging the results of four shadowmaps
